Working with Layers
In Photoshop, layers are used to work on individual parts of an image
while not affecting other parts. You might say that layers are like
transparency papers stacked on top of one another which can be
repositioned and separately drawn on without disturbing each other.
Explaining Layers :
Consider the following Graphic created in Adobe Photoshop:
To the viewer, this is simply one flat graphic. However, in Photoshop, it is actually 4 separate
layers (
graphics if you will)
stacked on top of one another. There is a Blue Background layer, two
separate layers with a T9 Cloud, and a top layer with the “Tutorial9″
text.
As you can see, layers are more like transparencies stacked on top of
one another, each with something different sketched onto them.
Let’s put this knowledge to use now!
How to use Layers in Photoshop :
You may have an easier time understanding how to use layers if we
take on a simple task in Photoshop that allows you to play with them
yourself. Go ahead and Create a New Document (File > New). Set it up to be 400 x 400px, with a resolution of 72px/inch.
We’re going to create the following graphic using layers:
Filling the Background :
Typically, when I’m working in Photoshop, I like to work from the
background to the top (probably because that’s how the graphic is seen
by viewers), so to start things off we are going to fill our background
layer with a nice dull green.
Select a Dull Green Foreground Color. To do this,
click your foreground color, and use the color sliders to find a
suitable color. Alternatively, you can enter the HEX value
36442a next to the “#” symbol on the lower right side.
Click OK to confirm the color value you’ve picked. Now grab the
Fill Tool
from the Toolbox, and click anywhere in your working image area. Upon
clicking the mouse button, your entire background layer should be filled
with the foreground color.
Create a New Layer :
Let’s take a quick peek at the
Layers Palette, and examine some of it’s more basic functions:
To create a new layer,
Click the “New Layer” icon shown above.
As you can see, a new layer “
Layer 1” has been created.
You can rename this layer by clicking the name of it twice, and entering
whatever name you desire. While this layer is selected (
highlighted) you will be working on this layer alone in the photoshop document!
Drawing the Grass :
Select the
Brush Tool from the toolbox. Adobe Photoshop already has a preset brush called “
Dune Grass” which we are going to use to create the grass in our graphic.
In the brush tool’s
Option Bar, open the
Brush Preset Picker (
Small down arrow to the right of the currently selected “Brush”). Scroll a ways down the list, and select the
Dune Grass Brush.
We’re not going to go over brushes in great detail in the tutorial,
but you do need to know that this brush is setup to alternate between
foreground and background colors. Because of this, we need to s
elect a background color with a similar green value (
Such as #19250f).
Once you have a good foreground and background color selected, start
painting with your brush in the working image area on your new layer.
Hold down the Mouse Button to use the brush tool.
Let’s add some text now!
The Type Tool :
Select the
Horizontal Type Tool from the toolbox.
Set your Foreground Color to
White. Click anywhere in your working image area to begin typing.
Once you’ve typed something,
select all of the text with your cursor (
hold down the mouse button, and drag over the text to select). We’re going to adjust some of the type attributes in the
Type Options Bar.
Set the Font to
Arial, the font weight to
Bold, the text size to
60 pt, and the anti-aliasing to
Crisp.
As you can see, the
Type Tool has created a new
Type Layer in your
layers palette for the text. To apply the text,
click this new layer (
Or click Ctrl + Enter).
Great! Now let’s position our new type tool so that it appears to be emerging from the grass.
Moving Layers :
The first thing we need to do is position our Type Layer below the
Grass Layer so that the Grass will appear in front of it. In your
layers palette,
click and drag your Type Layer below the Grass layer.
Now we can use the
Move Tool to reposition our layer in the working image area. While the Type Layer is selected,get the
Move Tool from the toolbox, and drag the text in the working image area to where the grass starts to end.
Pretty Simple, eh? Now that you have the general idea of layers
down, let’s create a few more and play with some of their options.
Opacity, Blending Modes & Filling Selections :
Create a New Layer just above the background (
below the type and grass layers), and drag out an elliptical selection using the
Elliptical Marquee Tool (
this tool may be hidden behind another marquee selection tool).
Using the
Fill Tool, fill this selection (
on your new layer) with
White. Once filled,
Deselect everything (
Select > Deselect, or Ctrl + D).
You should have a large, white circle in your document now. Set this layers
Blending Mode to
Overlay in the layers palette:
Setting the blending mode is that easy! I won’t go into details
about blending modes in this tutorial, but please experiment with them
to get an idea of what they do.
Now set the
Opacity to something like 15-20%.
Simple! Now right click this new layer, and select
Duplicate Layer. This will create an exact copy of this layer (retaining layer opacity and blending mode). Using the
Move Tool reposition this layer so that you can clearly see the two different circle edges.
See how you can see through the top circle to see the circle behind
it? This is because our circle layers are somewhat transparent,
otherwise known as less opaque. By setting the opacity to something
below 100%, we are able to see through objects.
Finally, let’s take a look at one more useful feature in the layers palette. Click the
New Group icon at the bottom of the layers palette (
the one shaped like a folder).
Groups function in a similar manner to a folder. You can put
multiple layers inside of a group, and then when you select the group
(versus an individual layer), you’re able to adjust the opacity,
blending mode, and position of all those layers at the same time (as
well as several other things).
Let’s give it a try!
Drag your two circle layers inside of the group.
Once both layers have been placed in the group (they should appear indented from the other layers),
Select the Group in the layers palette. Using the
Move Tool, drag
inside of your working image area. Both your circle layers should move
at the exact same time, yet they still retain their individual layer
attributes!
Prepared to begin path
while midway through creating or editing a path
When mouse is pressed
Add an anchor point to path
Remove anchor point from path
When hovered over begin point of path; to close path
When hovered over endpoint of existing path; to continue path, or (if path is active) to edit that point
Prepared to convert existing anchor point

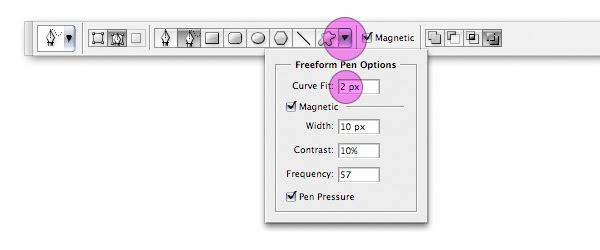

Freehand Pen Tool
Magnetic Freehand Pen Tool
Direct Selection Tool; Pen Tool with Command pressed
Path Selection Tool; Pen Tool with Command + Alt pressed
When hovered over canvas with Ctrl pressed; prepared for options menu
